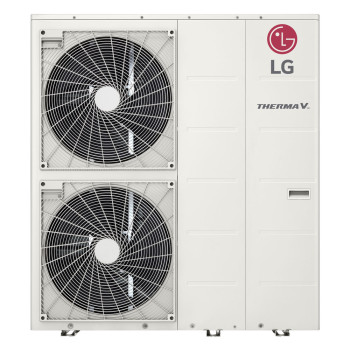

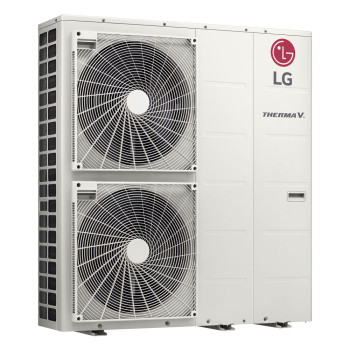

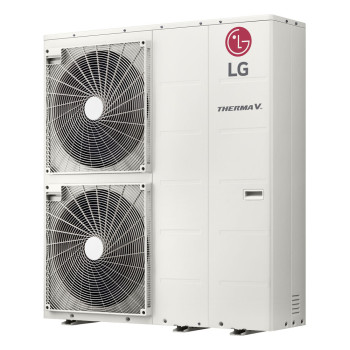

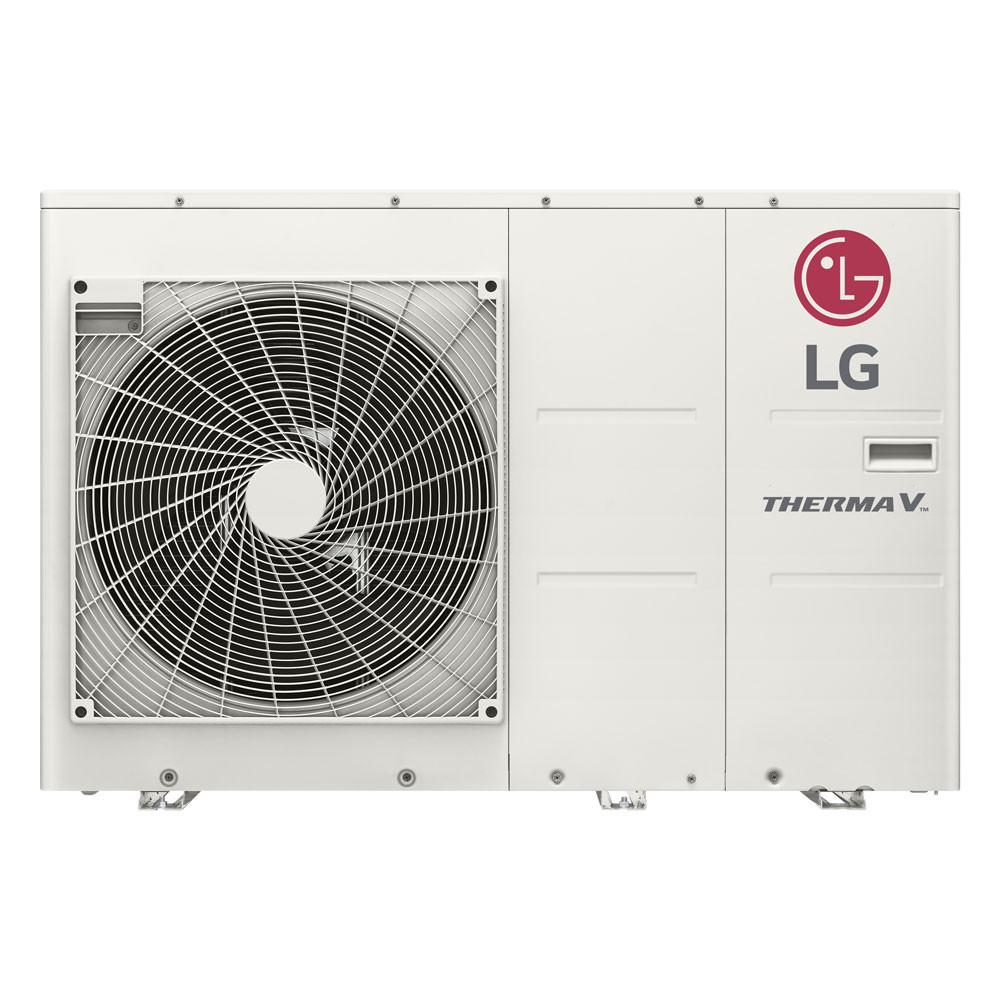

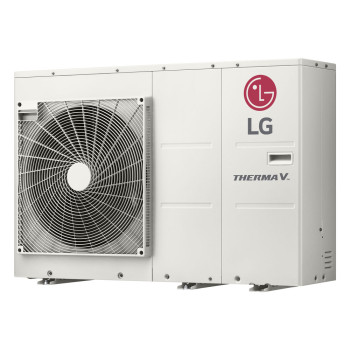

LG Therma V R32 Monobloc S Heat Pump

Shop Now

LG Therma V R32 Monobloc S Heat Pump featured image

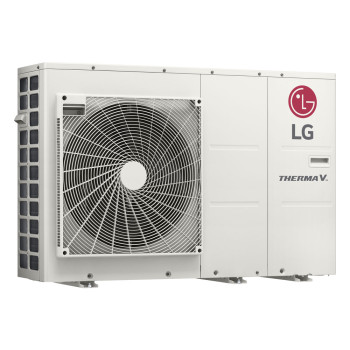

  • The THERMA V R32 Monobloc S is the 2nd generation of LG's R32 Monobloc series. As implied by “silence” and “supreme," it boasts reduced noise level and best performance in the THERMA V Series. Combining the indoor and outdoor as one module, it's also connected by only water piping eliminating the need for refrigerant piping. Furthermore, hydronic components like the plate heat exchanger, expansion tank, water pump, flow sensor, pressure sensor, air vent valves, and safety valve are conveniently situated inside the unit. The R32 Monobloc S provides excellent heating performance, especially at low ambient temperature while lowering its carbon emissions with R32.

    • All-in-one outdoor unit
    • Heating, cooling and hot water supply
    • A+++ / A++ energy class (average climate at 35°C / 55°C water outlet)
    • Leaving water temperature up to 65°C Works at outdoor temperature as low as -25°C
Safe indoor environment from leaking refrigerant
    • 100% heating capacity at -15°C OAT (@ LWT 35°C)
    • Low sound level allowing high installation location flexibility
    • R32 refrigerant with reduced global warming potential (GWP)
    • LG ThinQ

    Quiet Mark certified model numbers:

    • LG HM051MR Therma V Monobloc S 5kW – (HM051MR U44)
    • LG HM071MR Therma V Monobloc S 7kW – (HM071MR U44)
    • LG HM091MR Therma V Monobloc S 9kW – (HM091MR U44)
    • LG HM121MR Therma V Monobloc S 12kW – (HM121MR U34)
    • LG HM093MR Therma V Monobloc S 9kW - 3 phase – (HM093MR U44)
    • LG HM123MR Therma V Monobloc S 12kW - 3 phase – (HM123MR U34)
  •   R32 Monobloc S R32 Monobloc S
    Features R23 Monobloc S (1Fan) R32 Monobloc S (2Fan)
    Refrigerant & GWP R32 / 675 R32 / 675
    Capacity Range (kW) (1Ø) 5.5 / 7 / 9 (1Ø&3Ø) 12 / 14 / 16
    Energy Efficiency Class for Heating for Heating
    A+++ / A++ (35℃ / 55℃) A+++ / A++ (35℃ / 55℃)
    Power Supply (V, Ø, Hz) 220-240, 1, 50 1,239 × 1,380 × 330 / (1Ø) 111.9 (3Ø) 119.1
    Dimension&Weight (WxHxD,mm/kg) 1,239 × 834 × 330 / 89.5 220-240, 1, 50
    (WxHxD, mm / kg) 380-415, 3, 50
    Operation Range (OAT, ℃) Heating : -25 ~ 35 Heating : -25 ~ 35
    Cooling : 5 ~ 48 Cooling : 5 ~ 48
    Operation Range (LWT, ℃) Heating : 15 ~ 65 Heating : 15 ~ 65
    Cooling : 5 ~ 27 (16 ~ 27)1) Cooling : 5 ~ 27 (16 ~ 27)1)
    Operation Range (LWT, ℃) DHW : 15 ~ 802) DHW : 15 ~ 802)
    Model Name (1Ø) HM051MR U44 HM121MR U34
    HM071MR U44 HM141MR U34
    HM091MR U44 HM161MR U34
    Model Name (3Ø) - HM123MR U34
    HM143MR U34
    HM163MR U34

    1) When fan coil unit is not used.
    2) DHW 58 ~ 80°C operating is available only when the electric heater is operating.
    *OAT : Outdoor Air Temperature, LWT : Leaving Water Temperature



    Quiet Mark certified model numbers:

    • LG HM051MR Therma V Monobloc S 5kW – (HM051MR U44)
    • LG HM071MR Therma V Monobloc S 7kW – (HM071MR U44)
    • LG HM091MR Therma V Monobloc S 9kW – (HM091MR U44)
    • LG HM121MR Therma V Monobloc S 12kW – (HM121MR U34)
    • LG HM093MR Therma V Monobloc S 9kW - 3 phase – (HM093MR U44)
    • LG HM123MR Therma V Monobloc S 12kW - 3 phase – (HM123MR U34)
To learn more about how Quiet Mark certifies products and why we don't publish decibel levels, click here.
